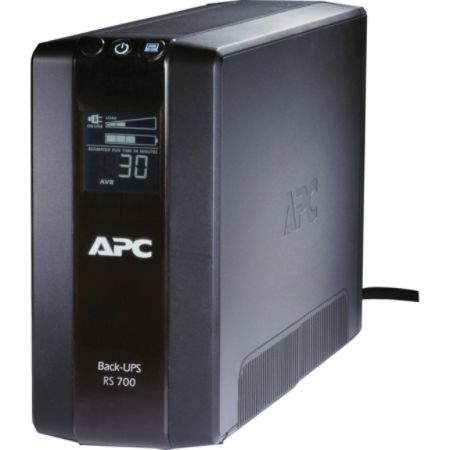

APC® Back-UPS® RS LCD 700 Master Control Item # 353580
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
353580
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
APC Back-UPS RS 700 VA Tower UPS offers high performance protection for your business and office computer systems. It provides abundant battery backup power, allowing you to work through medium and extended length power outages. It also safeguards your equipment from damaging surges and spikes that travel along utility, phone and network lines.
- Allows you to work through medium and extended length power outages. Saves the battery for power outages when you need it most.
- High performance protection for your business and office computer systems.
- Safeguards your equipment from damaging surges and spikes.
- Includes audible alarms, LED status indicators, a replaceable battery, push-button circuit breakers and several outlets.
Product Details
| Item # | 353580 |
| OfficeMax # | 23157619 |
| Manufacturer # | CA1950 |
| Load Capacity (Watt) | 450 W |
| Backup/Run Time (Full Load) | 3 Minute |
| coaxial cable line protection | yes |
| Product Series | RS |
| height | 7.5 in. |
| Certifications & Standards | FCC Part 15 Class B; FCC Part 68; NOM; UL 1778; CE; C-Tick; UL; FCC |
| number of outlets with battery backup | 3 |
| Serial Port | Yes |
| Output Voltage | 120 V AC |
| standalone/rack-mounted | standalone |
| protection status indication | yes |
| width | 3.6 in. |
| Product Line | Back-UPS |
| package contents | Back-UPS RS 700 VA Tower UPS; CD with Software; Cord Management Straps; USB cable; User Manual |
| average charging time | 12 hours |
| depth | 12.2 in. |
| Product Name | Back-UPS RS 700 VA Tower UPS |
| EMI/RFI noise reduction | no |
| manufacturer | BR700G |
| cord length | 6 feet |
| weight | 15.73 lb |
| Eco-conscious | helps save energy |
| brand name | APC |
| connected equipment warranty | $150,000 |
| UL listed | no |
| USB | Yes |
| volt-amps | 700 VA |
| Input Voltage | 110 V AC |
| Backup/Run Time (Half Load) | 12 Minute |
| dimensions | 7.48"H x 3.58"W x 12.20"D |
| Load Capacity (VA) | 700 VA |
| joule rating | 354 joules |
| fax/phone line protection | no |
| wattage | 420 watts |
| eco-label/standard | RoHS |
| form factor | Tower |
| number of outlets | 6 |
| Receptacles | 3 x NEMA 5-15R |
| color | black |
| on/off switch | yes |
| mounting hardware included | no |
| warranty length | 3-year limited |
| hot swappable | Yes |
| Show More ▾ |
Customer Reviews
Rated 4.7 out of 5�by 43
reviewers.
Rated 4 out of 5�by Mac user Good, but needs improvement
Good specs and pricing, and have had good luck with APC products previously. Appears to be working OK. A few problems: (1) User manual needs improvement: refers to software available online, but APC does not provide software for Mac OS X; (2) User manual has sometimes confusing terminology, needs editing by an inexperienced user; (3) cannot plug my disk drive transformer into either backup outlet directly - one is too close to the master outlet, and the other is too close to the power cord - I had to use a cube tap to space the transformer away from the chassis.
December 3, 2015
Rated 5 out of 5�by DJNMTECH ExExcellent oduct, Excellent Value!
The UPS arrived packaged perfectly in a timely fashion. It was easy to install and priced competitively. I will definatley be purchasing from Schneider Electric again!
May 12, 2015
Rated 5 out of 5�by Country Gal Excellent Power Protection
Purchased this UPS when my old one finally rolled over and died. Three days after installation, this area experienced a very heavy, wet snow event. Utility power flickered and surged for well over an hour at my location. I have my computer, monitor and DSL modem plugged into the UPS portion. Everything continued to work normally. The UPS was clicking and maintaining a constant voltage. Over half of the modems in the county blew their programming - the provider techs spent Thanksgiving through the weekend reprogramming at great expense to the provider. My modem was fine, thanks to the UPS. I checked the UPS operation during a planned utility power outage when the house went to generator power. Again, the voltage stayed clean and fairly constant. To say I am pleased with the unit is a supreme understatement. Thanks for adding AVR technology to your products. It really saved my equipment.
December 12, 2014
Rated 5 out of 5�by SteveC APC Power-Saving Back-UPS Pro 700
This product is easy to set up, install and use. Very satisfied!
January 5, 2014
Product Q & A
(1 Q�:�1 A)
Product Q&A
Ask your questions. Share your answers.
11 months ago
by
rock
Answers
Answer:�
This unit will pull a maximum of 5 amps at 120V (using a power factor of 0.7). The maximum wattage for the BR700G is 420W and we do not suggest putting more than a 80% load on our units. In this case no more than 336W.11 months ago
by
APCProductSupport
1 of 1
1 of 1
From the Manufacturer|
Back-UPS® Pro Video
Overview
-
Back-UPS Pro BR700G
- Guaranteed protection and battery backup power for your valuable electronics, ensuring they remain safe from dangerous power disturbances
- Stay available and connected by powering critical devices (computers, wireless networking devices, gaming consoles, security systems and other electronics) during a blackout
- Guaranteed protection from surges and spikes caused by storms, lightning, circuit overloads, power cycling, etc.
- Automatic voltage regulations maintains healthy voltage conditions without using battery power
- 6 total outlets – 3 battery backup, 3 surge protection only
- LCD status display for simple UPS management
- PowerChute software provides safe system shutdown, preventing potential data corruption
- Lifetime $150,000 equipment protection policy for all connected electronics
- ENERGY STAR® certified
Product Features
-
The electronic devices you rely on every day for communication, security, and entertainment such as networking equipment, computers, televisions, security systems, and gaming consoles are at risk of damage and disconnect due to unexpected blackouts, voltage fluctuations, and other power disruptions.
Offering high-performance, premium power protection for office computers, the APC by Schneider Electric Back-UPS Pro BR700G provides instant battery power to your critical electronics when the power goes out, reducing risk of damage and keeping you connected and available both personally and professionally. Additionally, the BR700G UPS (uninterruptible power supply) offers guaranteed surge and lightning protection for attached electronics. Advanced features such as Automatic Voltage Regulation (AVR) and an easy-to-read LCD display make the BR700G the ideal choice for high-performance systems. By connecting your valuable devices, you are ensuring these investments against potentially irreversible damage. When the power goes out, the APC BR700G will power critical devices including home networking equipment; allowing you to maintain your internet connection. This allows you to work productively, avoid the loss of valuable data, and safely shut down equipment.
The BR700G UPS power supply includes PowerChute Personal Edition software which provides UPS management options, safe system shutdown, and energy monitoring to enable cost savings and prevent potential data corruption. This UPS power supply unit offers six outlets, three of which provide battery backup runtime during an outage, and a 420-watt/700-volt ampere output power capacity. -
Extended Battery Backup for Critical Equipment
The BR700G UPS provides extended power backup so you can continue to work on a PC, access the network, and game online when a power outage occurs. The BR700G gives you time to save your work and safely shut down electronics or even work right through an outage.
Automatic Voltage Regulation for Consistent Protection
The BR700G UPS protects connected devices from dangerous surges or spikes in voltage. Automatic Voltage Regulation (AVR) technology consistently maintains safe voltage conditions without draining the battery, saving backup runtime for power outages. Customizable voltage transfer points and sensitivity profiles let you customize settings to maximize equipment protection and the unit's battery life. The BR700G UPS also provides data line surge and spike protection for telephone, Ethernet, and coaxial cable connections. -
Prevent Data Corruption with PowerChute Software
APC PowerChute Personal Edition power and energy management software is included. PowerChute prevents data corruption by automatically saving files and shutting down your system in an extended power outage or low-battery condition. PowerChute monitors and displays energy usage and reduces costs via customized energy management planning. Connect the USB cable that's included with your UPS backup unit to your computer to easily use the software. -
Check Status Easily with LCD Display
An LCD display on the front of the unit lets you easily monitor your power status and manage the BR700G UPS. Check your power status, input/output voltage, current load, battery charge, remaining runtime, and more. -
ENERGY STAR Certified for Energy Efficiency
The BR700G UPS is ENERGY STAR® certified for its efficient operation and ability to help realize lower energy costs.
Warranty and Equipment Protection Policy
This UPS is covered by a three-year limited warranty. It also comes with a lifetime equipment protection policy of up to $150,000. APC will repair or replace attached equipment that sustains surge-related damage while properly connected to a registered Back-UPS uninterruptible power supply unit.
-
Package Contents
APC Back-UPS Pro BR700G with 6-foot power cord, PowerChute Personal Edition software CD, USB cable, and user manual.
Back-UPS Product Selector
Back-UPS Comparison
|
|
|
|
|
| APC Back-UPS® Pro BR700G | APC Back-UPS® Pro BR1000G | APC Back-UPS® Pro BR1300G | APC Back-UPS® Pro BR1500G | |
|---|---|---|---|---|
| Output | ||||
| Rated Power | 700 VA / 420 W | 1000 VA / 600 Watts | 1300 VA / 780 Watts | 1500 VA / 865 Watts |
| Number of outlets |
6 total NEMA5-15R outlets: 3 battery & surge 3 surge only (incl. 2 Controlled outlets) |
8 total NEMA5-15R outlets: 4 battery & surge (incl. 1 Controlled) 4 surge only (incl. 2 Controlled outlets) |
10 total NEMA 5-15R outlets: 5 battery & surge (incl. 1 Master & 1 Controlled) 5 surge protection only (incl. 3 Controlled outlets) |
10 total NEMA 5-15R outlets: 5 battery & surge (incl. 1 Master & 1 Controlled) 5 surge protection only (incl. 3 Controlled outlets) |
| Surge Protection | ||||
| AC Power Surge Protection | All outlets | All outlets | All outlets | All outlets |
| Data Line Surge Protection |
Network: 10/100/1000 Base-T Ethernet (gigabit) Coax cable (CATV, SATV, modem, A/V) |
Network: 10/100/1000 Base-T Ethernet (gigabit) Coax cable (CATV, SATV, modem, A/V) |
Network: 10/100/1000 Base-T (gigabit) Ethernet Coax cable (CATV, SATV, modem, A/V) | Network: 10/100/1000 Base-T (gigabit) Ethernet Coax cable (CATV, SATV, modem, A/V) |
| AVR | Yes | Yes | Yes | Yes |
| Run Time | ||||
| Run Time | 13.2 | 14.5 | 14.7 |
12.6 with BR24BPG - 47.5 |
| Battery | ||||
| Extended run battery pack compatibility | No | No | No | Yes p/n: BR24BPG |
| Mangement | ||||
| Alarms | Visual (LCD display) and audible alarms | Visual (LCD display) and audible alarms | Visual (LCD) and audible alarms | Visual (LCD) and audible alarms |
| Auto-Shutdown Software | Yes - Downloadable PowerChute Personal Edition (via USB and serial interface) | Yes - Downloadable PowerChute Personal Edition (via USB and serial interface) | Yes - Downloadable PowerChute Personal Edition (via USB and serial interface) | Yes - Downloadable PowerChute Personal Edition (via USB and serial interface) |
| APC Peace of Mind Warranty | ||||
| Warranty | 3 year warranty | 3 year warranty | 3 year warranty | 3 year warranty |
| Equipment Protection Policy | $150,000 Lifetime Connected Equipment Protection | $150,000 Lifetime Connected Equipment Protection | $150,000 Lifetime Connected Equipment Protection | $150,000 Lifetime Connected Equipment Protection |
Technical Specifications
-
Output
- Output Power Capacity: 420 Watts / 700 VA
- Max Configurable Power: 420 Watts / 700 VA
- Nominal Ouput Voltage: 120V
- Outpout Frequency (sync to mains): 50/60Hz +/- 3Hz
- Topology: Line Interactive
- Waveform Type: Stepped approximation to a sinewave
- Output Connections: (3) NEMA 5-15R (Battery Backup), (3) NEMA 5-15R (Surge Protection)
-
Input
- Nominal Input Voltage: 120V
- Input Frequency: 50/60Hz +/- 3Hz (auto sensing)
- Cord Length: 1.83 meters
- Input voltage range for main operations: 93 - 130V
- Maximum Input Current: 12A
- Input Breaker Capacity: 7A
-
Batteries & Runtime
- Included Battery Modules: 1
- Typical Recharge Time1 : 12 hour(s)
- RBC Quantity: 1
-
Communications & Management
- Interface Port(s): USB
-
Surge Protection & Filtering
- Surge Energy Rating: 354 Joules
- Filtering: Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: instantaneous
- Data Line Protection: Network line - 10/100/1000 Base-T Ethernet (RJ-45 connector), Coaxial cable for CATV/SATV/modem/Audio-Video (coax connector)
-
Physical
- Maximum Height: 7.48 in
- Maximum Width: 3.58 in
- Maximum Depth: 12.20 in
- Net Weight: 15.73 lbs
- Shipping Weight: 17.60 lbs
- Shipping Height: 9.92 in
- Shipping Width: 5.43 in
- Shipping Depth: 17.40 in
- Color: Black
-
Conformance
- Regulatory Approvals: ENERGY STAR (USA), FCC Part 15 Class B, NOM, TUV, UL 1778
-
Sustainable Offer Status
- RoHS: Compliant
- REACH: Contains no SVCHCs
Images
Documents
-
Document 1 - opens PDF
PDF, 78K, 2 pages
- 1 The time to recharge to 90% of full battery capacity following a discharge to shutdown using a load rated for 1/2 the full load rating of the UPS.
